Description

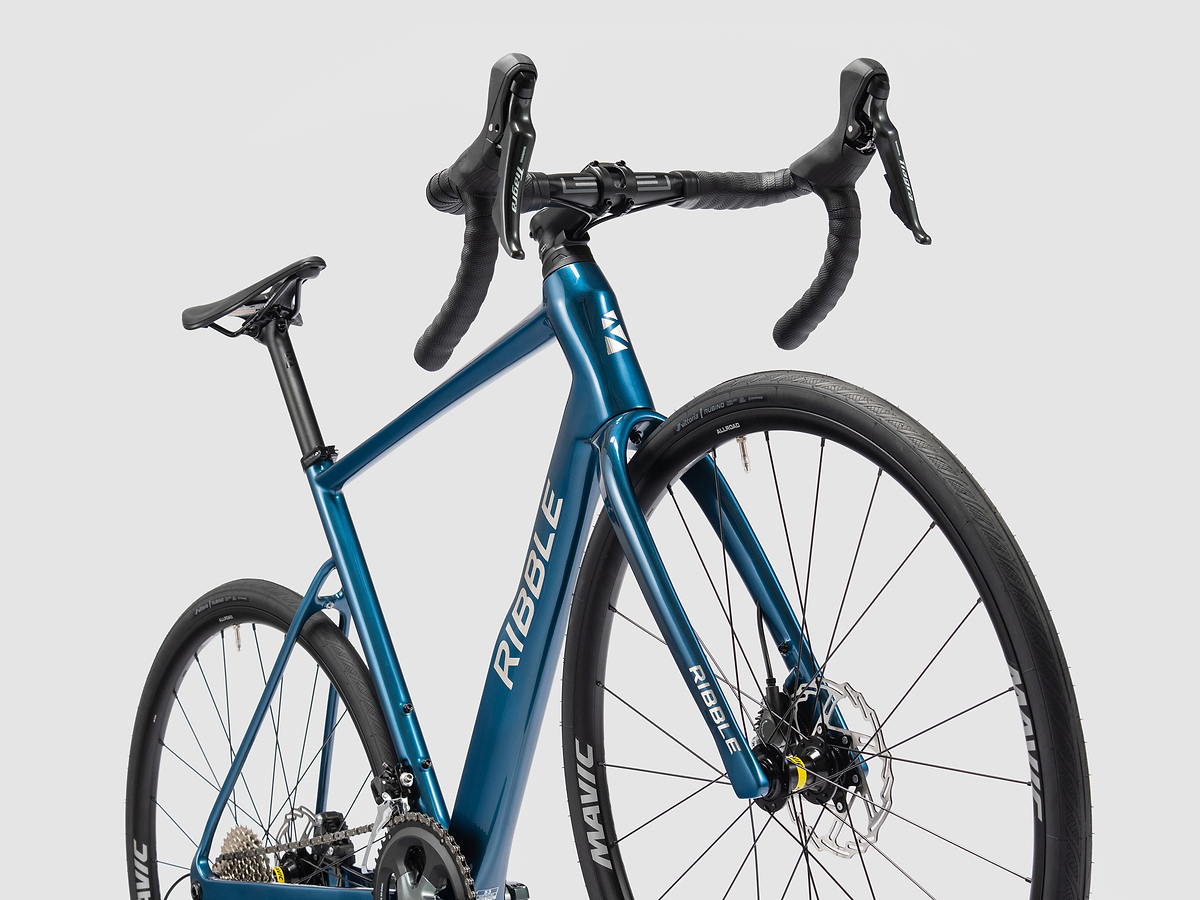

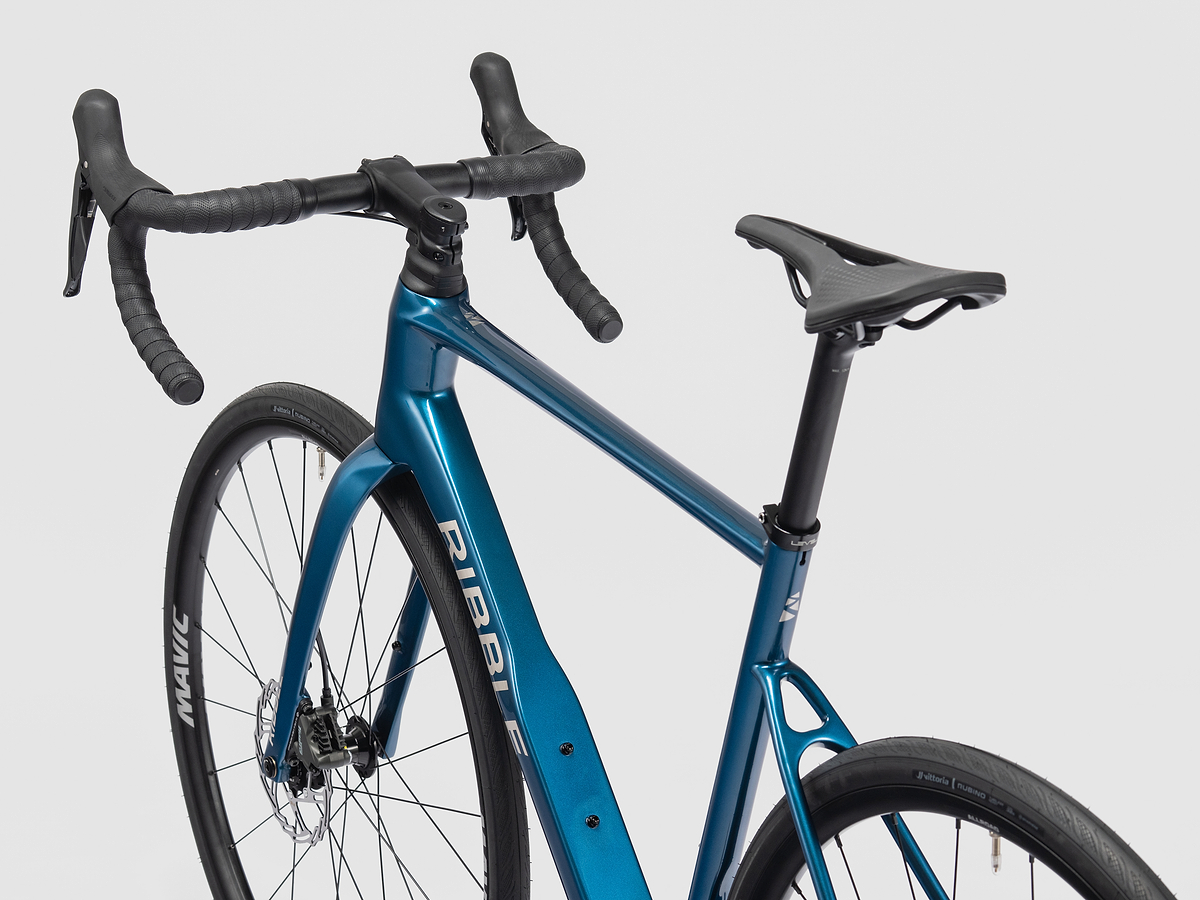

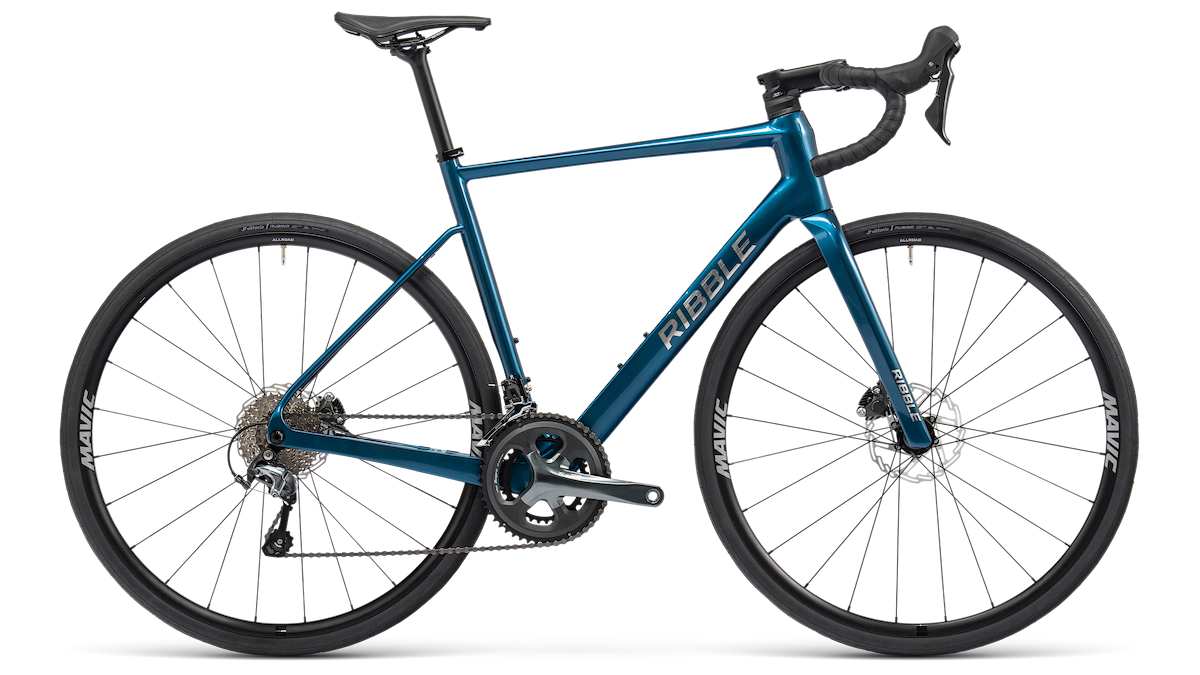

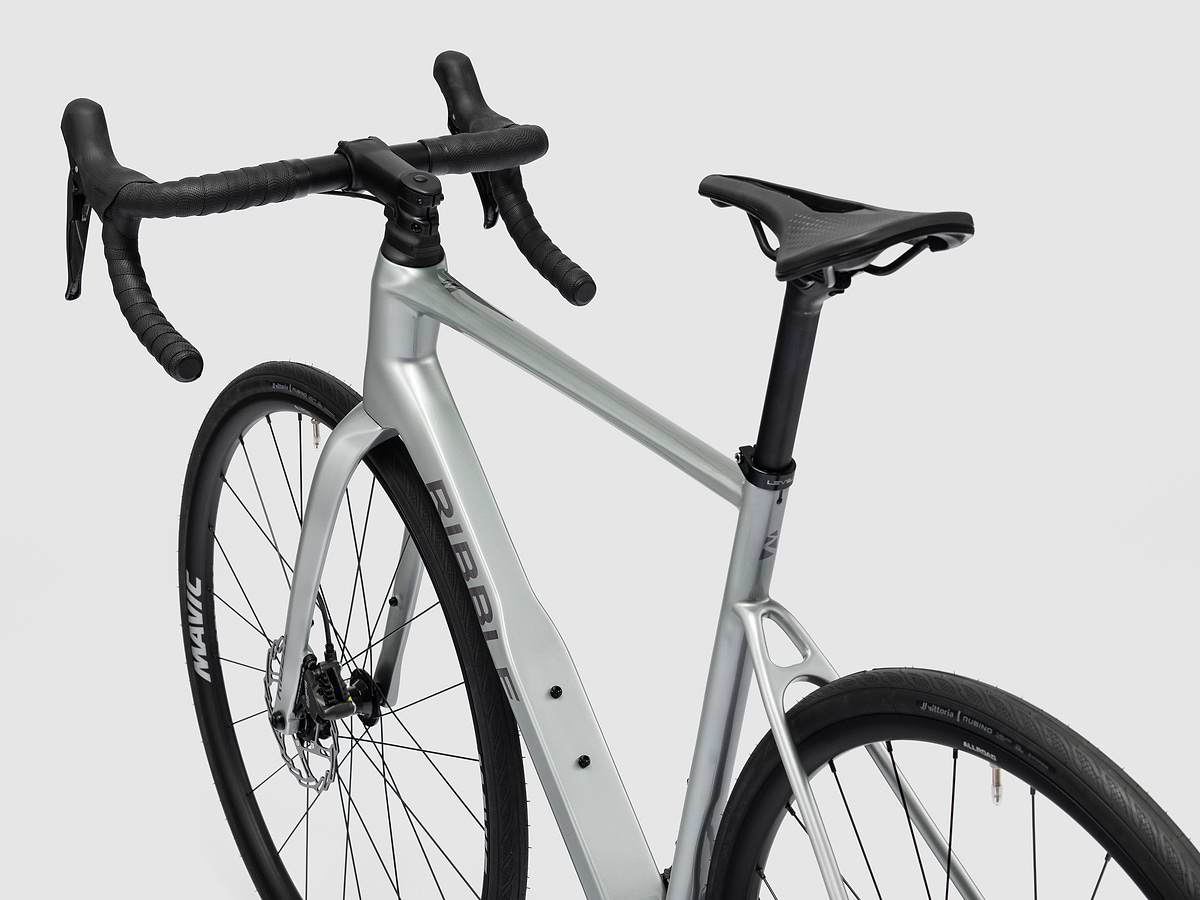

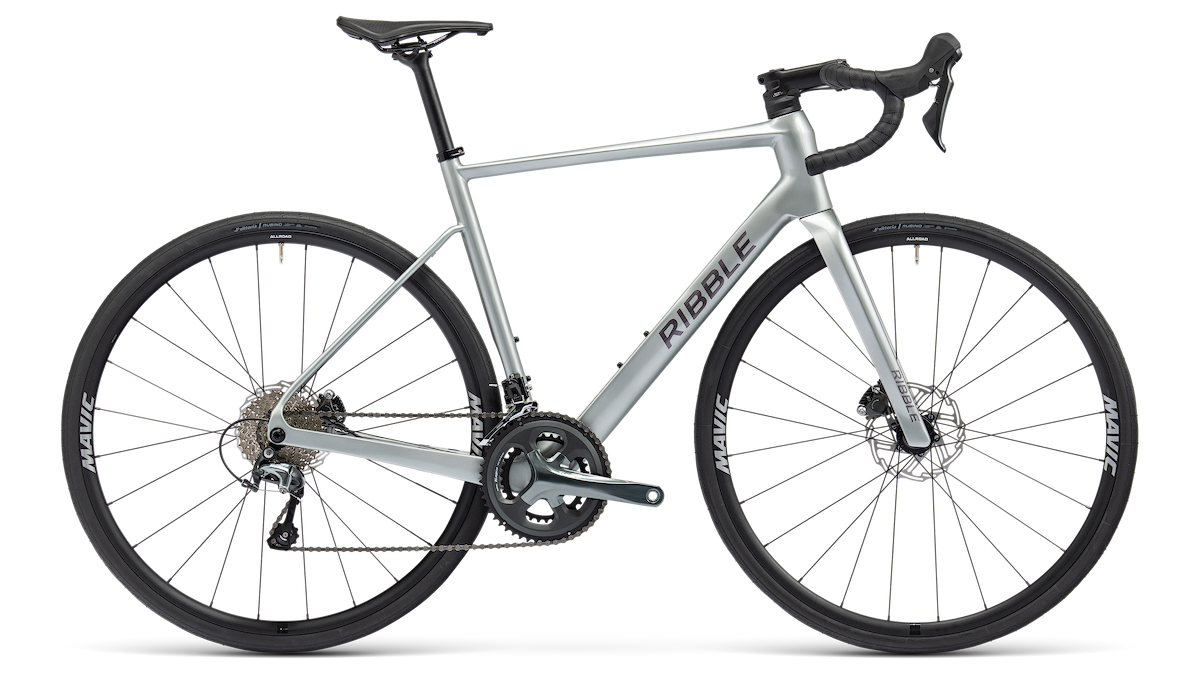

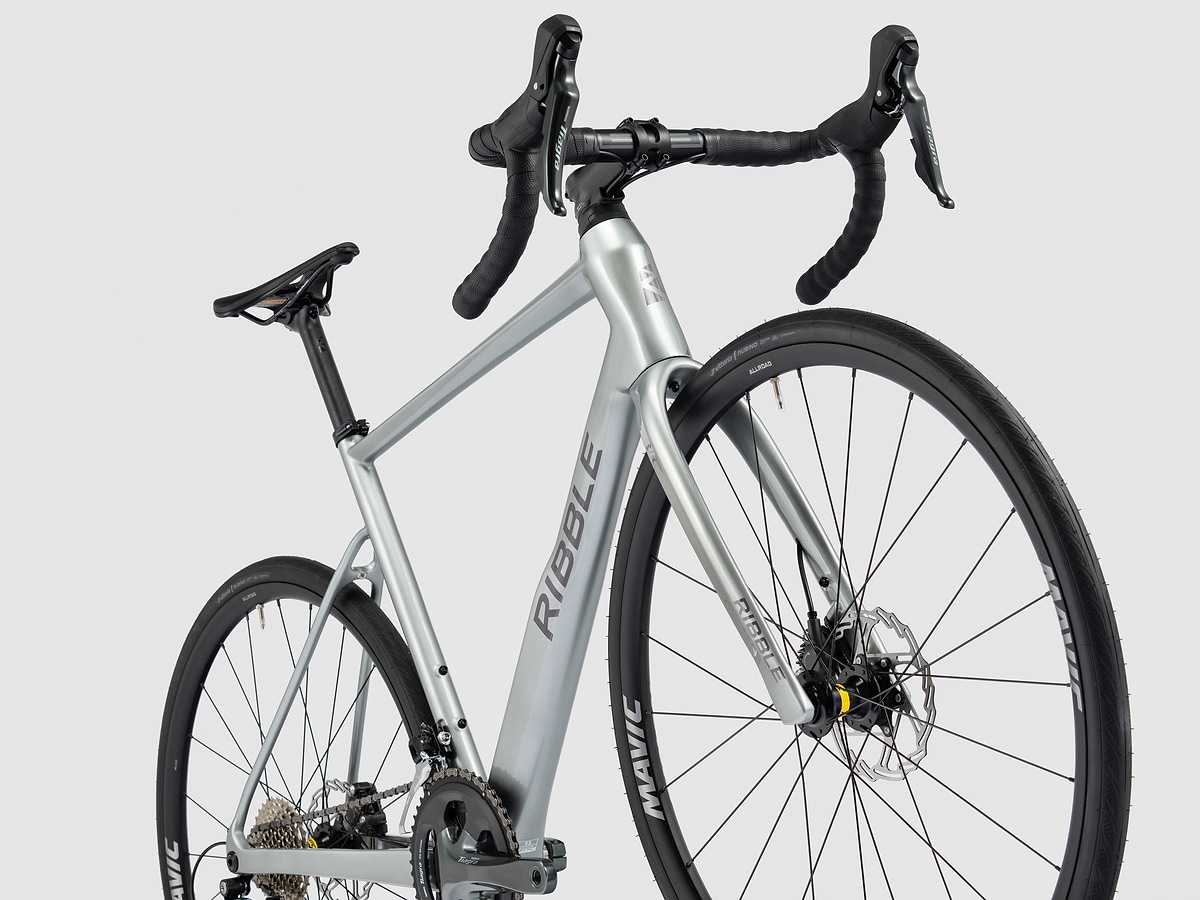

A carbon endurance road bike with all the comfort, confidence and versatility you need for year-round riding on UK roads. A lightweight carbon frame, fork and seatpost with Shimano Tiagra shifting, Mavic Allroad wheels and Vittoria Rubino 32mm tyres.

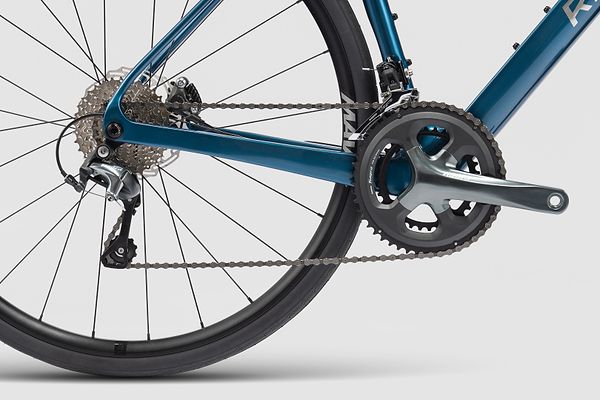

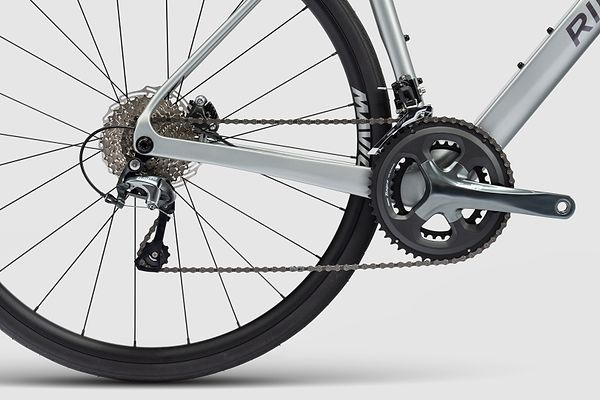

Groupset
Shimano Tiagra is a dependable 10-speed groupset built for riders who want straightforward mechanical performance and reliable hydraulic disc braking. Smooth, consistent shifting and proven durability make it easy to live with across year-round riding, giving the ALLROAD CARBON a solid, confidence-inspiring foundation from the first ride.

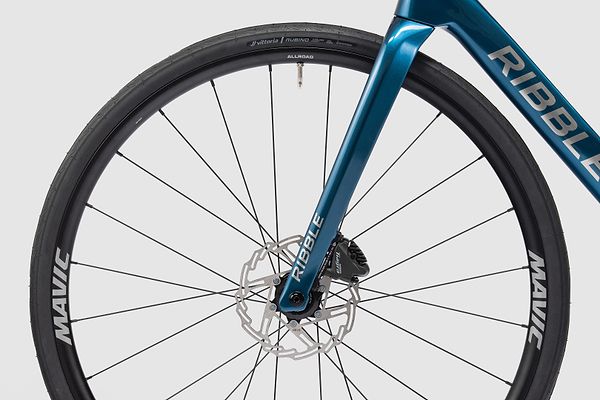

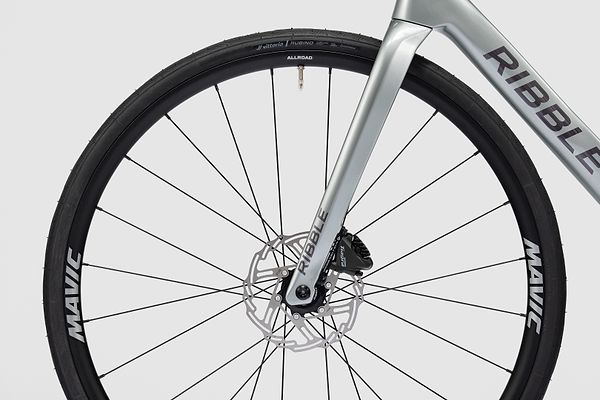

Wheelset
Mavic Allroad is a robust and reliable alloy wheelset built for riders who want a dependable everyday setup on a performance road bike. Tough enough for all-season riding and mixed road surfaces, tubeless-compatible and built to Mavic’s proven durability standards, it is paired with Vittoria Rubino 32 mm tyres for a smooth, well-rounded ride across any road.

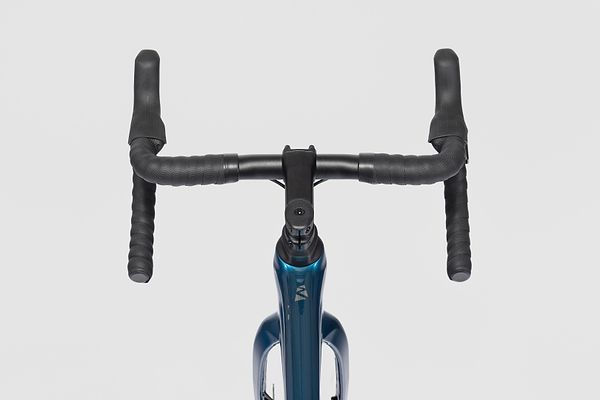

Handlebars
Ribble alloy handlebars and RS-3 stem deliver a reliable, well-proportioned cockpit setup that lets the geometry of the ALLROAD CARBON work exactly as intended. The RS-3 is a lighter weight alloy stem that provides a precise fit between bar and fork, while the alloy handlebar offers a comfortable drop shape sized to the frame for a consistent, controlled position across all riding conditions.

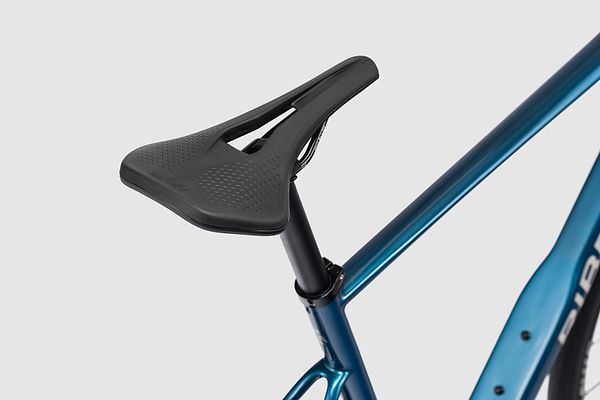

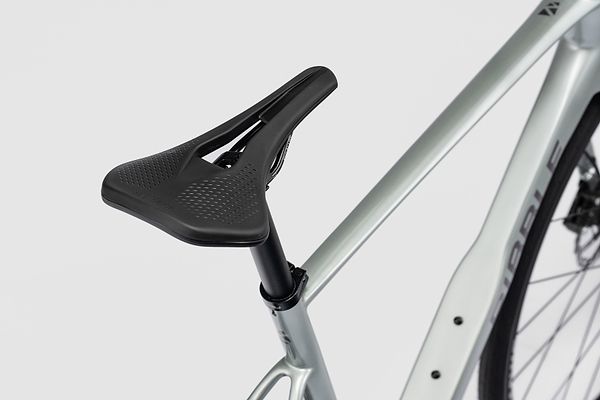

Saddle
The Selle Italia Model A is a well-rounded performance saddle that delivers reliable all-day support without overcomplicating things. A neutral shape suits a wide range of riding positions, while the padding takes the edge off longer rides without losing that direct, connected feel on the bike.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'11 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Vollständige Spezifikation
Bitte beachte, dass die genaue Spezifikation unten je nach Größe und Spezifikation, die du auswählst, variieren kann.
Bike
- Alloy Seat Clamp - 31.8mm
- Alloy Setback Seatpost 27.2mm - 350mm
- Allroad Carbon Fork Silver
- Allroad Carbon Frame Silver XSM 45cm
- Allroad SL/SL R/SL R e Front Mech Hanger
- BBRS500 68mm Bottom Bracket
- CN-HG54 10spd Chain 116 Links
- CS-HG500 10spd Cassette HG 11-34T
- Carbon Fork Front Thru Axle - 119mm
- Centre Lock Rotor Lockring
- Chainstay Protector
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 37mm
- Embossed Black Bar Tape
- FC-R4700 Tiagra 10spd Chainset 165mm 50-34T
- Headset Bearing 1F30 40 x 51.8 x 8mm (45x45)
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M40417 1.75mm Freehub Spacer
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 Black
- M5 20mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY25 Ti UDH Rear Thru Axle
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-4700 Tiagra Medium Cage Rear Derailleur
- Rubber Circular Bung - 10mm Domehead 8mm Post
- Rubber Open Cable Grommet
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
- Tektro CL Rotor 160mm
- Thru Axle Lever
- Tiagra FD-R4000 Derailleur Braze On
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- Allroad Disc Front Wheel 700c CL
- Allroad Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
- Rubino V TLR G2.0 Black 700x32mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Round Headset Bearing Cover for AL
- RS-3 Cable Guide
Saddle
- Model A Superflow Saddle
