How to choose the correct derailleur hanger - Part 1

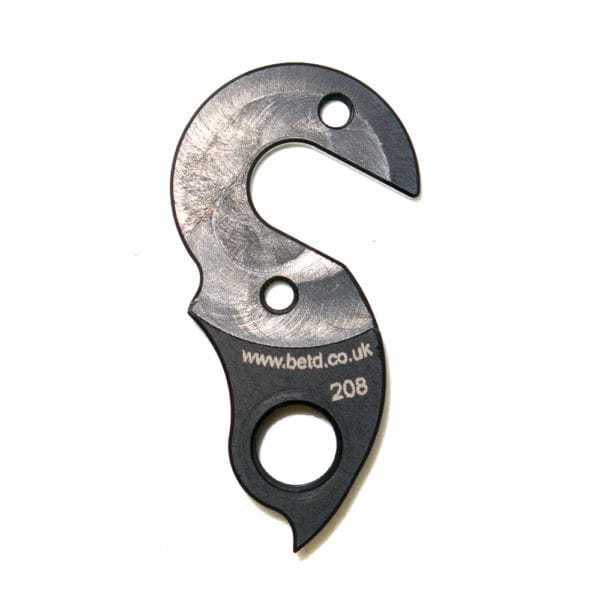

This hanger is designed to fit Ribble carbon frames equipped with traditional rim brake calipers, circa 2010-2016. The hanger is compatible with the following models only;

• Gran Fondo
• Sportive 365
• Sportive Bianco
• New Sportive Racing (not to be confused with the later Sportive Racing model)
• Sportive Azzurro

Designed to fit carbon frames produced between 2010 to 2017. This hanger is compatible with the following models only;

• R872 (2017 Edition) – This frameset was the last of the range of ‘Stealth’ R872’s to be produced and can be distinguished from earlier versions of the frame by having a 27.2mm seat post diameter. (The earlier versions had a 31.6mm diameter seat post).
• Evo Pro Carbon 2010-2016 – The first edition of the Evo Pro had completely round tube profiles, a visible carbon weave, a 27.2mm seat post diameter and was available in Black, Red or White.
• Sportive Racing – With Matt Black or Green decals.
• Sportiva Carbon – Rim brake version.

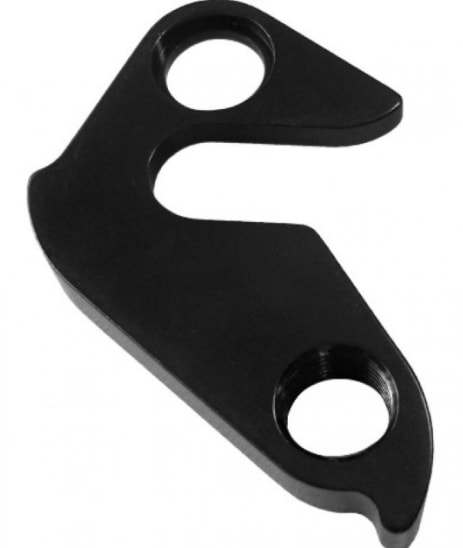

This hanger is compatible with a range of lightweight Ribble alloy framesets manufactured from Dedacciai tubing. In terms of aesthetics, they look very similar to the 7005 (section 4) and can be distinguished using the chainstays. Frames crafted from SC61 and EM2 tubing feature box section chainstays rather than the ovalised stays of the 7005 framesets.

This derailleur hanger is designed to fit the 7005 SL sloping frameset, 7005 horizontal and 7005 Blacktail (alloy frameset with carbon seat stays) framesets. The chainstays will be ovalised rather than a box section, differentiating them from the very similar SC61.10A and EM2 framesets.

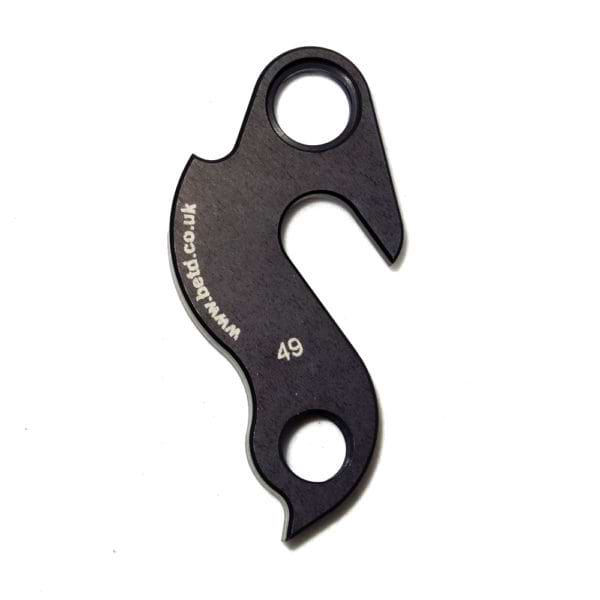

Only compatible with 7005 Audax framesets produced between approximately 2002 to 2010. This frameset requires a hanger with a single bolt fitting rather than the later twinbolt fitting.

Visually, the 7005 Race was identical to its sibling, the 7005 Audax (section 5). The only differences wer the 7005 Race lacked the mudguard mounts of the ubiquitous winter training bike and used a different gear hanger.

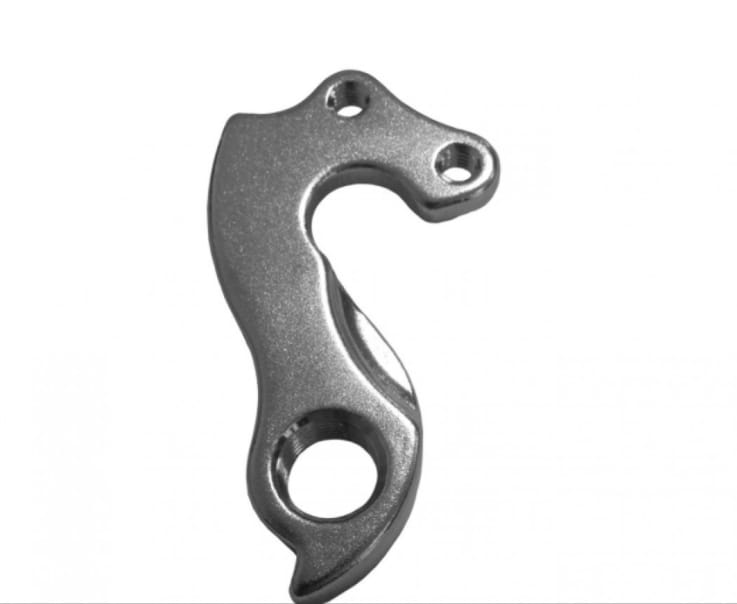

Compatible with the R872 (or Stealth as it was sometimes referred to) sold between 2012 and 2016. There were three iterations of the stelth versio of the R872, and this 3 bolt hanger is compatible with the first two editions. Compatible framesets will be equipped with a 31.6mm diameter seat post rather than the later 27.2mm version.

This hanger is designed to fit various Ribble alloy framesets circa 2011 to 2017. It's compatible with the following models;

• Last edition of the 7005 Audax – Approximately 2011-2017
• 7046 Sportive Horizontal top tube (not sloping)
• 7005 Sportive
• CR1 – An alloy cyclocross bike equipped with cantilever-style brakes

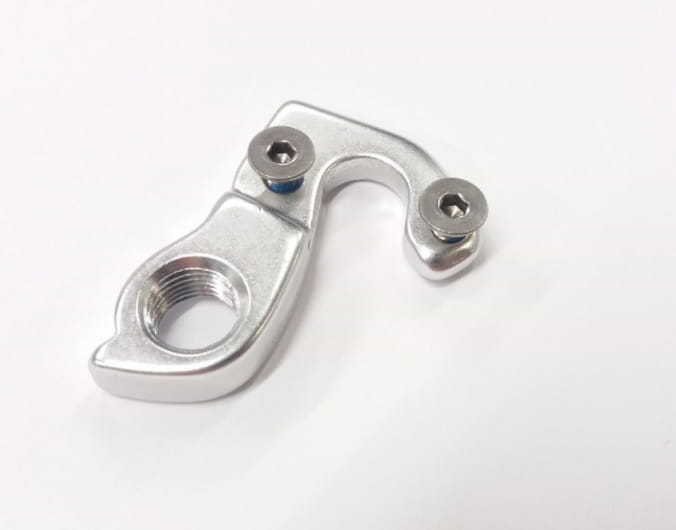

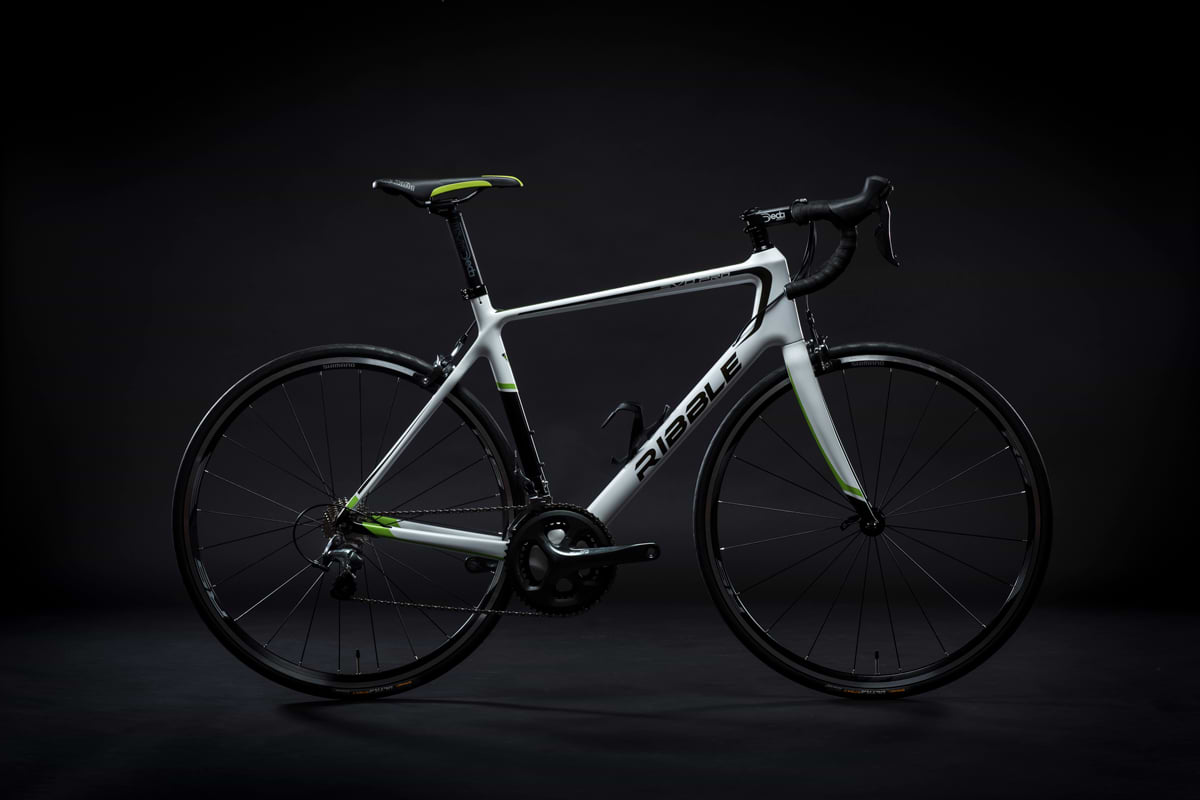

This updated Evo Pro was launched in 2017 and is noticeable for its distinctive White, Black and Lime Green colour scheme.

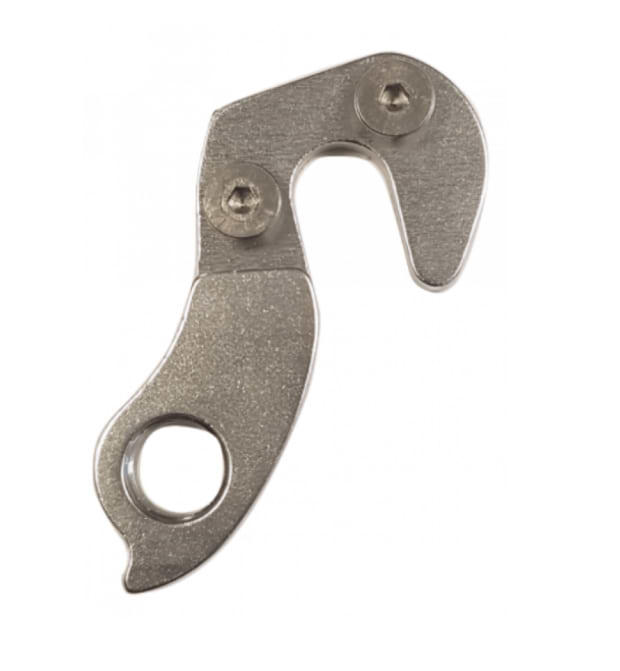

Released in 2017, this distinctive frameset was the predecessor to today’s CGR AL multi-surface frameset.

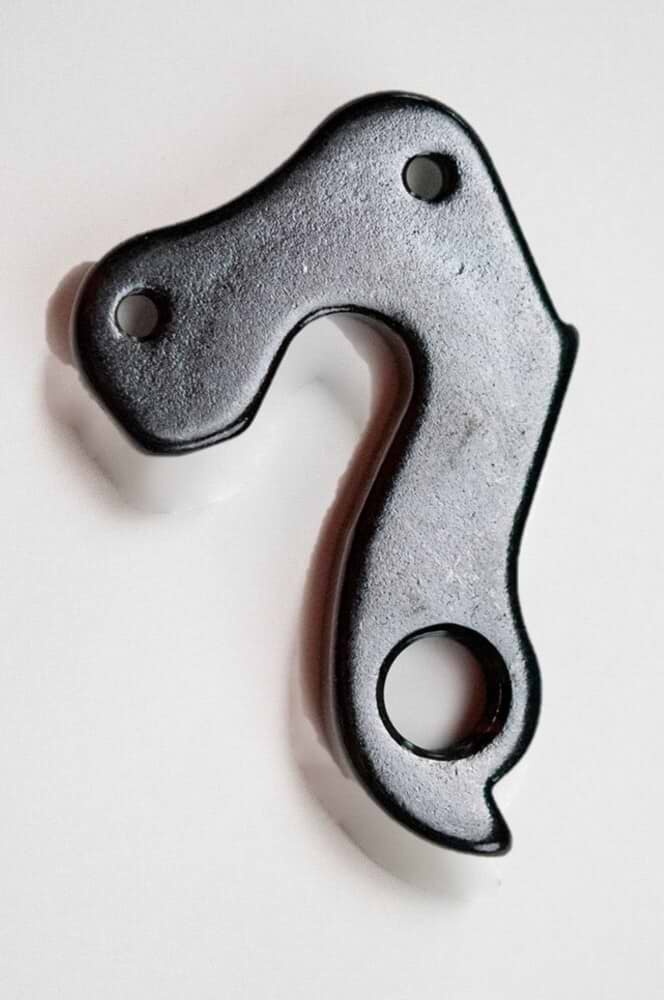

The Endurance AL was the entry-level model from the Endurance bike range that was first launched in 2018.

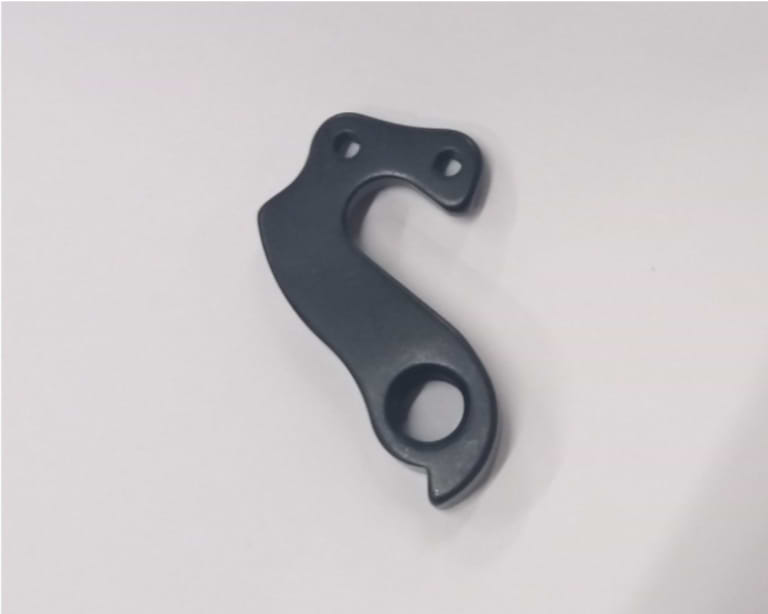

This ultralight carbon frameset was originally called the Ultimate SL upon its launch in approximately 2015/2016. It should not be confused with the Endurance SL, which was in production from 2018 to 2024.

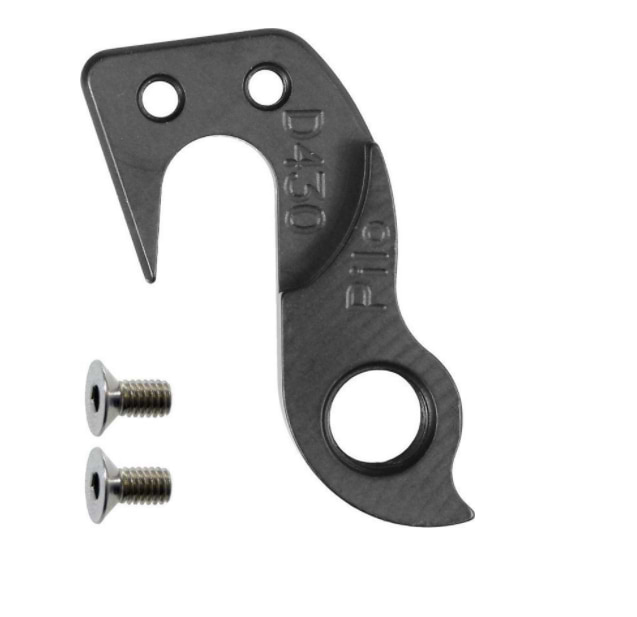

This hanger is only compatible with the 7046 Sportive Alloy frameset with a distinctive curved top tube design. It is incompatible with its horizontal tubed sibling (please refer to section 7 for the correct hanger).

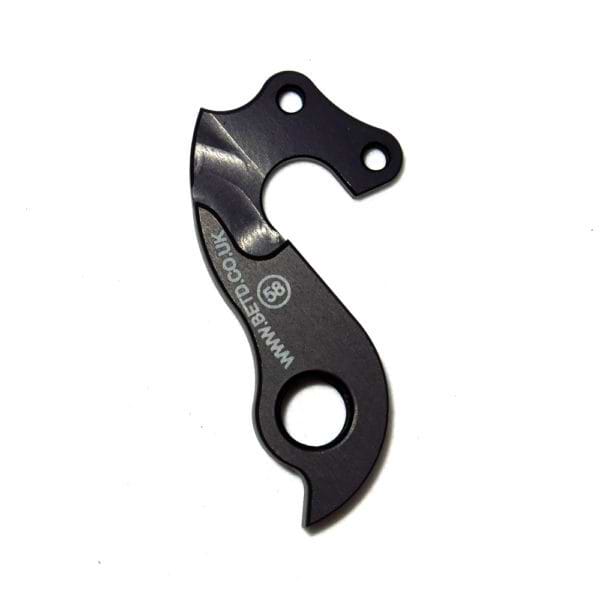

This hanger is only compatible with framesets that require an internal fit hanger rather than the more typical external fit (bolts on from the cassette side of the dropout, rather than the derailleur side). Please check your bike to ensure it requires an internal or external fit hanger (please see section 2 for the internal fit version).

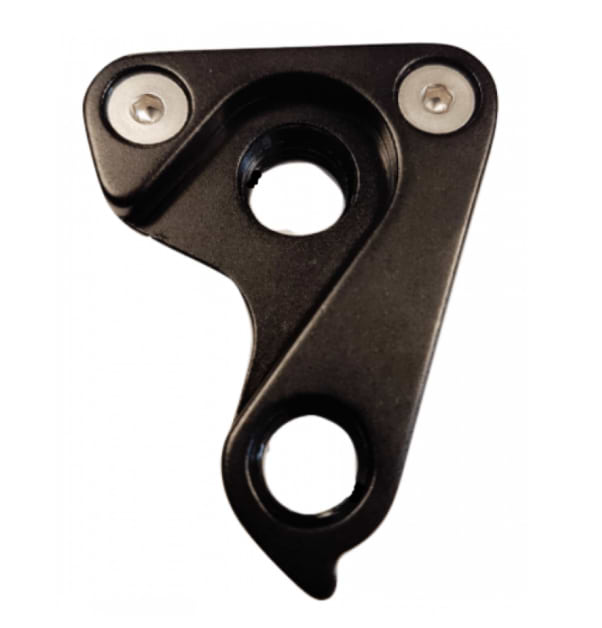

Exclusively designed to fit the disc brake-equipped versions of the Aero 883 and Gran Fondo DISC framesets.

Designed exclusively to fit the rim brake-equipped Aero 883 frameset.

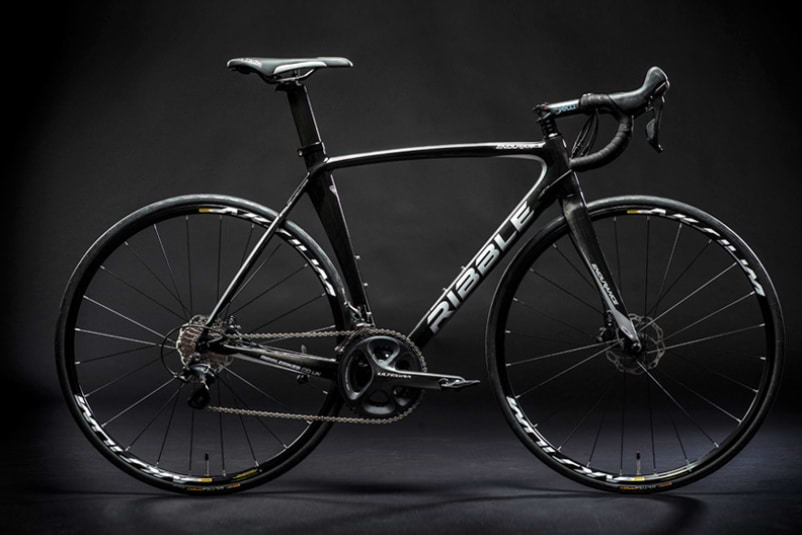

This forerunner of the Ribble 'endurance' range was orignally available in two variants, Aero and standard. This hanger is compatible with the Endurance ‘Aero’, which has an aero-shaped seat post rather than the more traditional round seat post.

The Aero TT was sold for a number of years, and over this timespan, the design was updated. Please check your existing hanger carefully to see if this is the correct fitting.

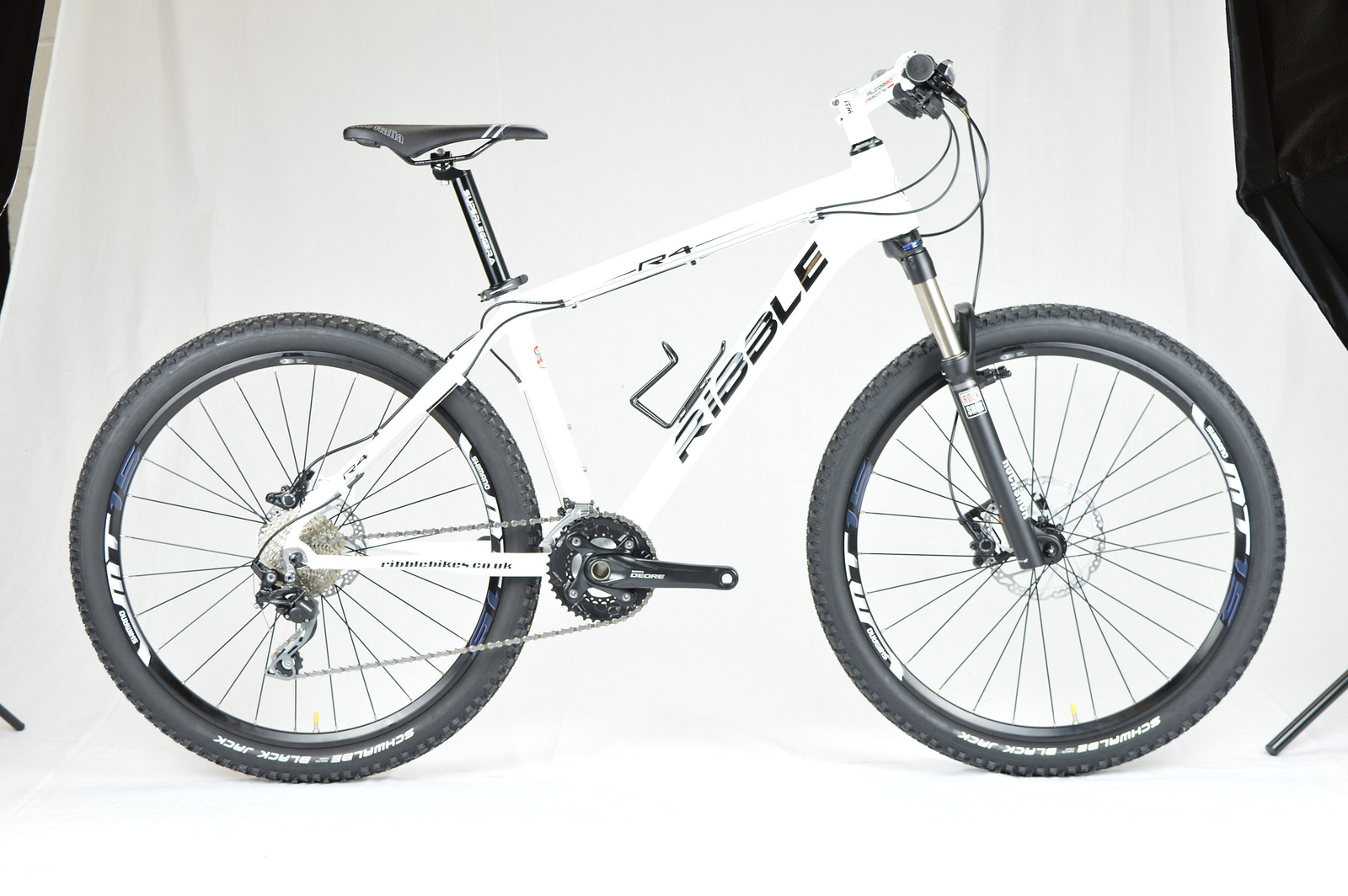

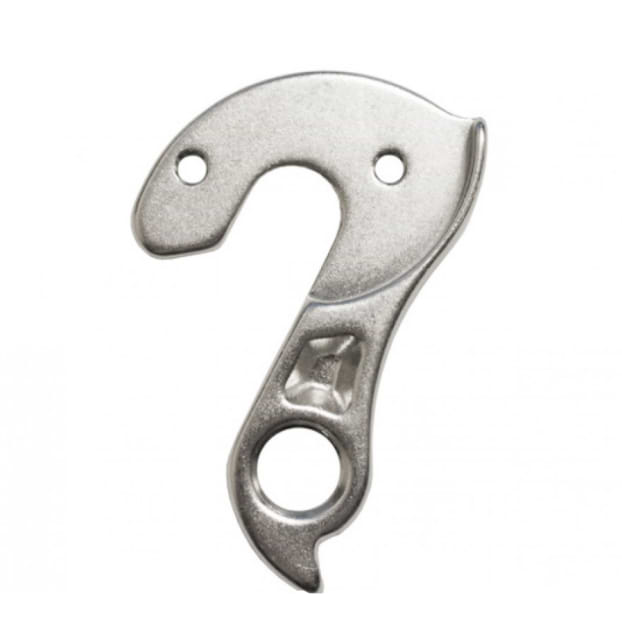

The iconic R4 MTB was our 26″ alloy hardtail of the early noughties. Again it may be possible that there will be more than one hanger design, so please check your existing hanger carefully to ensure correct fitment.

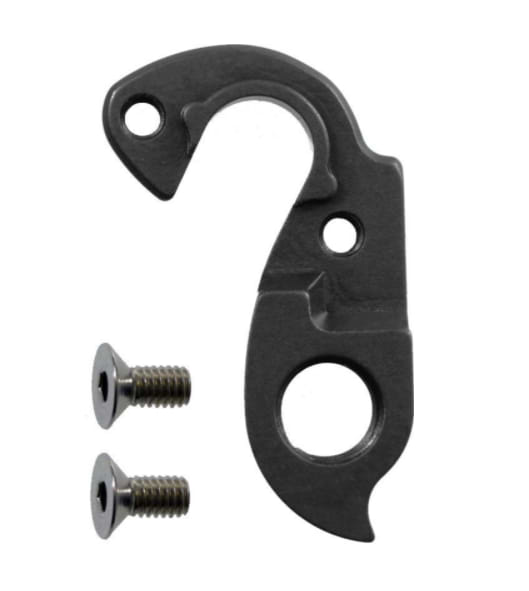

The HF83 was constructed from Dedacciai carbon tubing and was, for a time, the premium carbon frameset in our road range The hanger was exclusive to this frame only.

Similarly to the HF83 above, the Scuro (left) and Nero Corsa (right) framesets were produced for us by Dedacciai.

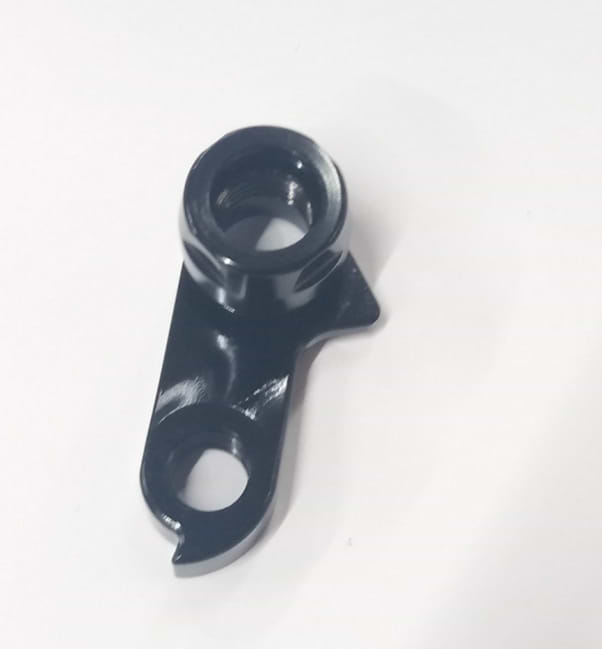

One of the first cross-specific carbon framesets we ever produced, the CX-5 requires its own specific hanger.
